RELN 1200L Pumpwell

RELN 1200L Pumpwell.

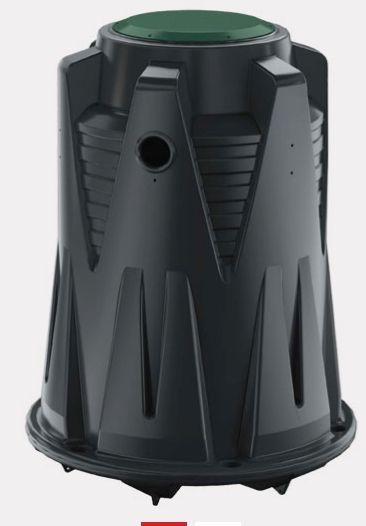

RELN 1200L Pumpwell is a housing for Black and Grey water pumps, designed to pump wastewater where the flow in the pipe is required to be pumped to a higher location.

1200L Nominal Capacity

• Certified to Australian Standard AS/NZS1546.1 – Lic AMI1651

• Tough UV stabilised rotationally moulded polyethylene vessel

• Proven UV stabilised injection moulded lid (RELN Septic Tank)

• Easy 100mm PVC Sewer pipe connection via Pipe seal Gasket

• Variable inlet height to suit fall or volume required (between 1000L and 900L)

• Simply drill to desired height in marked positions

• Flange base designed for hold down by compacted backfill

• Unique lock down flange penetrations and reo-bar tiedowns allow additional anchorage when set in concrete for areas of high water table or unstable soil

• Specially shaped base designed for:

- maximum strength

- maximum pump out

SPECIFICATIONS

OVERALL HEIGHT 1698mm

OVERALL DIAMETER 1250mm

WEIGHT 90kg

NOMINAL CAPACITY 1200L
